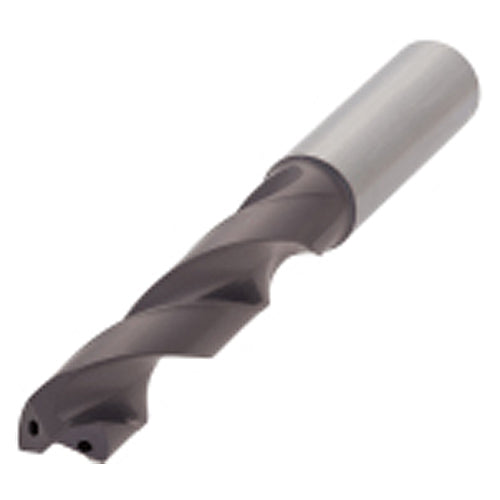

DSW159-063-16DI5 AH725
Item #: TG305531848
Brand: Tungaloy
Model #: 5531848
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 15.9 mm |
| Point Length (PL) | 2.89 mm |
| Decimal Equivalent | 0.626″ |
| Shank Length (LS) | 50 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.9 mm |
| Shank Type | Round |
| Length Group | 3xD |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | solid carbide Drills |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium |
| Grade | AH725 |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Usable Length (LU) | 63 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 83 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 133 mm |
