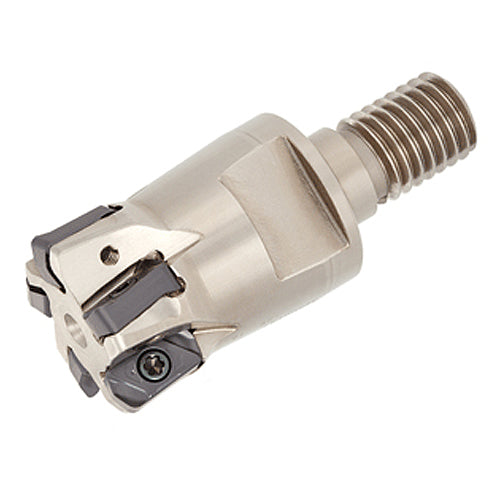

HXN03R030MM16-04
Item #: TG256995995
Brand: Tungaloy
Model #: 6995995
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 30 mm |
| Weight of Item (WT) | 0.19 Kg |
| Cutting Diameter (DC) | 30 mm |
| Functional Length (LF) | 40 mm |
| Cutting Diameter Maximum (DCX) | 30 mm |
| Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 4 |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Depth of Cut Maximum (APMX) | 1 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Body Material | Steel |
| Application | | Face Milling | High Feed Milling | |
| Connection Retention Knob Thread Size (CRKS) | M16 |
| Master Insert Identification (MIID) | LNMU0303ZER-MJ |
| Shank Height (H) | 22 mm |
