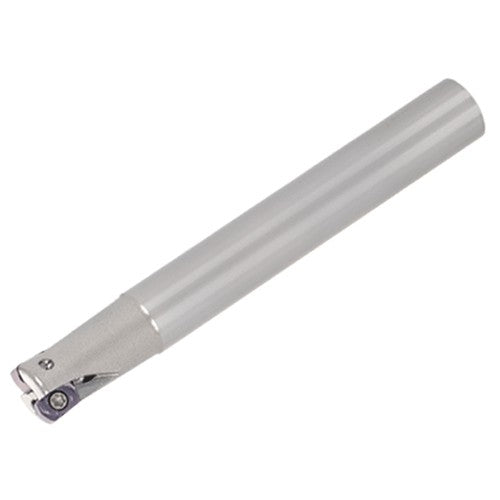

EXN02R020M20.0-04L
Item #: TG256837290
Brand: Tungaloy
Model #: 6837290
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 15.8 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Diameter (DC) | 15.8 mm |
| Master Insert Identification (MIID) | LNMU0202ZER-MM |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Head Length (LH) | 80 mm |
| Cutting Item Count (CICT) | 4 |
| Functional Length (LF) | 160 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm |
| Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 160 mm |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
