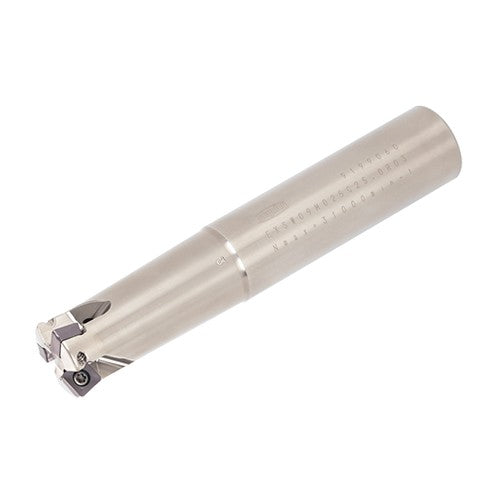

EXSW09U1.25C1.25R04
Item #: TG256790161
Brand: Tungaloy
Model #: 6790161
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 1-1/4″ |
| Weight of Item (WT) | 1.79 lbs |
| Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Head Length (LH) | 3″ |
| Cutting Item Count (CICT) | 4 |
| Functional Length (LF) | 6″ |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 6″ |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
