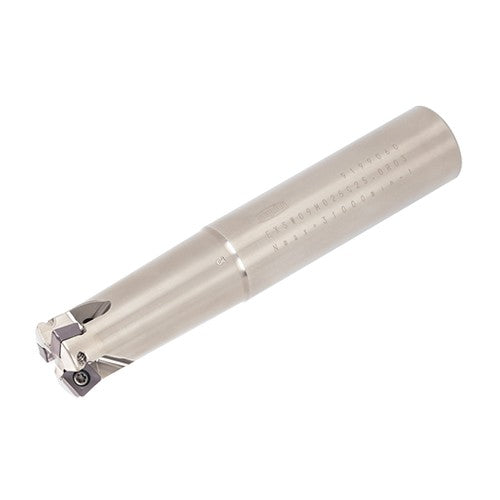

EXSW09M025C25.0R03
Item #: TG256789989
Brand: Tungaloy
Model #: 6789989
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Master Insert Identification (MIID) | SWMT0904ZER-MM |
| Cutting Diameter (DC) | 25 mm |
| Weight of Item (WT) | 0.45 kg |
| Cutting Diameter Maximum (DCX) | 25 mm |
| Head Length (LH) | 60 mm |
| Cutting Item Count (CICT) | 3 |
| Functional Length (LF) | 140 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 140 mm |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
