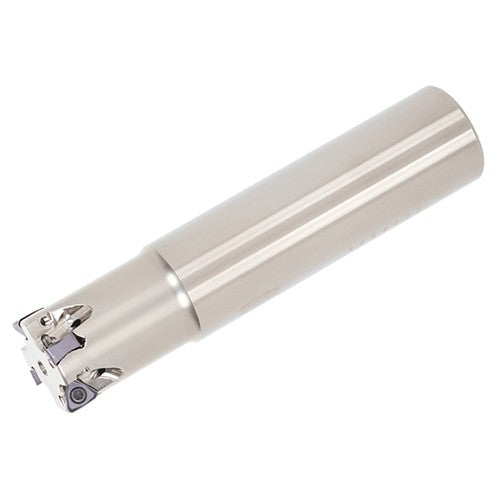

EPTN07U1.00C1.00R04
Item #: TG256786246
Brand: Tungaloy
Model #: 6786246
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1″ |
| Weight of Item (WT) | 0.4 lb. |
| Cutting Diameter (DC) | 1″ |
| Head Length (LH) | 1-1/2″ |
| Cutting Diameter Maximum (DCX) | 1″ |
| Functional Length (LF) | 4-1/2″ |
| Cutting Item Count (CICT) | 4 |
| Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 0.256″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4-1/2″ |
| Measurement Type | Inch |
| Application | | Shoulder Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Shank Length (LS) | 3″ |
| Master Insert Identification (MIID) | TNMU070308PER-MJ |
