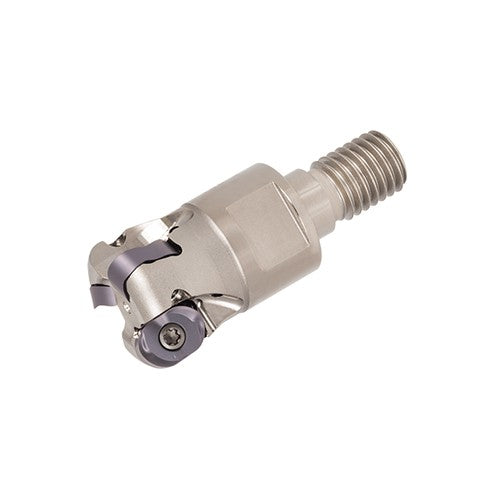

HXLN04M025M12R03
Item #: TG256735261
Brand: Tungaloy
Model #: 6735261
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Master Insert Identification (MIID) | LNMX0405R4-MJ |
| Cutting Diameter (DC) | 25 mm |
| Weight of Item (WT) | 0.16 Kg |
| Cutting Diameter Maximum (DCX) | 25 mm |
| Functional Length (LF) | 35 mm |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 4 mm |
| Body Material | Steel |
| Overall Length (OAL) | 57 mm |
| Connection Retention Knob Thread Size (CRKS) | M12 |
| Application | | Face Milling | High Feed Milling | Profile Milling | |
| Shank Height (H) | 17 mm |
| Connection Diameter Machine Side (DCONMS) | 21 mm |
