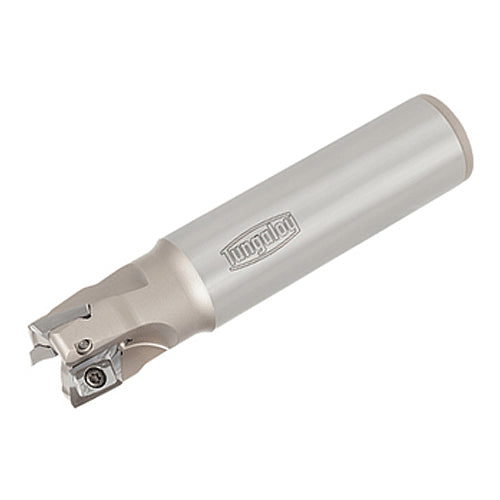

EPV16R040M32.0-03L
Item #: TG253111045
Brand: Tungaloy
Model #: 3111045
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Weight of Item (WT) | 1.43 Kg |
| Cutting Diameter (DC) | 40 mm |
| Head Length (LH) | 55 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Functional Length (LF) | 250 mm |
| Cutting Item Count (CICT) | 3 |
| Tool Type | 90 Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 16 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 250 mm |
| Measurement Type | Metric |
| Application | | Shoulder Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Shank Length (LS) | 195 mm |
| Master Insert Identification (MIID) | XVCT160508-AJ |
