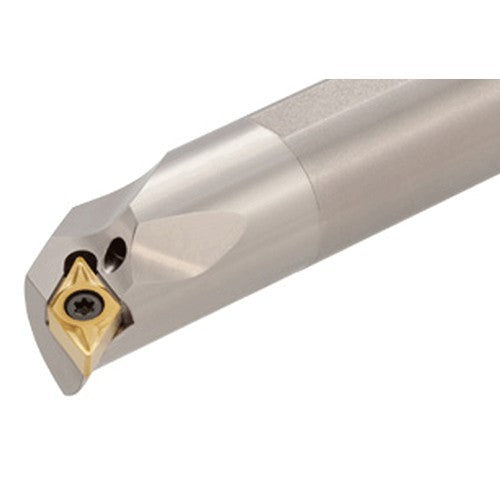

E10M-SDXXL07-D130
Item #: TG206989913
Brand: Tungaloy
Model #: 6989913
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 150 mm |
| Rake Angle Axial (GAMP) | -14 Degrees |
| Head Length (LH) | 25 mm |
| Rake Angle Radial (GAMF) | -16 Degrees |
| Shank Height (H) | 9 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 7.6 mm |
| Body Material | Carbide |
| Master Insert Identification (MIID) | DXGU070304R |
| Style | SDXXL |
| Minimum Bore Diameter (DMIN) | 13 mm |
| Measurement Type | Metric |
