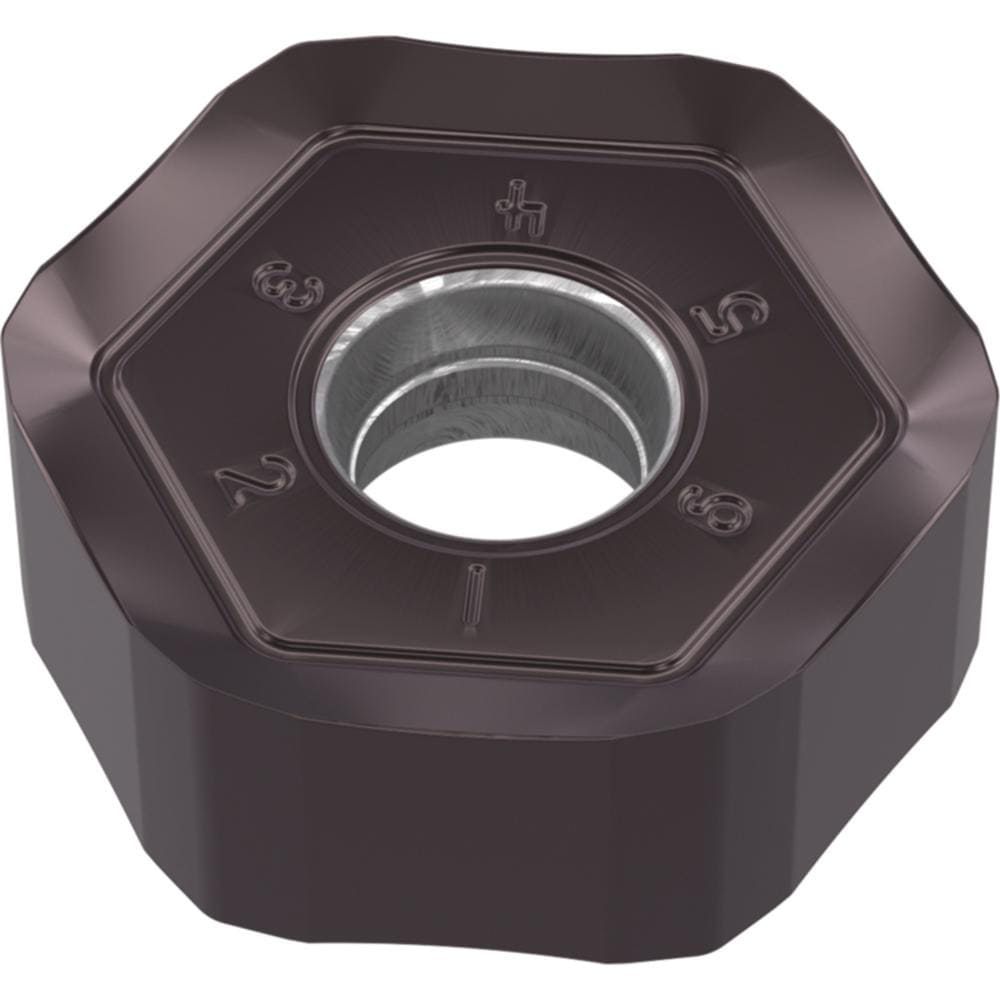

Brand: Widia / Part #: 6180278
Item #: 12031092
Brand: Widia
Model #: 6180278
Product Specifications
| Insert Style | HNPJ |
| Insert Size Code | 0905 |
| Insert Size | 53 |
| Insert Material | Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | WS40PM |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1200 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.0000 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (Decimal Inch) | 0.3380 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | HNPJ535ANSNGD |
| Iso Code | HNPJ0905ANSNGD |
| Manufacturers Catalog Number | HNPJ535ANSNGD |
| Cutter Series Compatibility | M1200 HN0905 IN |
| Chip Breaker | GD |
| Cutting Direction | Neutral |
| Material Application | General Purpose |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
