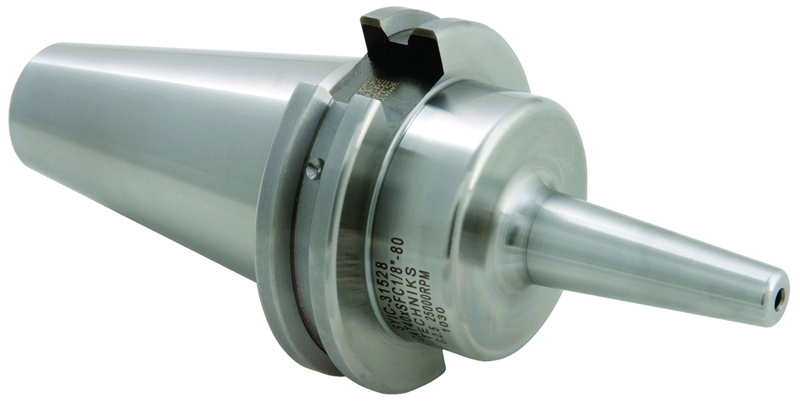

CAT40 1/4"-80mm - Shrink Fit Holder - Slim Line

Item #: TE1231548
Manufacturer: Techniks
Mfg #: 31548

Technical Specifications:
*Bore Diameter: 1/4 *Brand Name: Techniks *European-DIN Tool Shank Range: 6.4mm *Gage Length: 80mm *Outside Diameter: 2.5 *Shank: 1/4 *Standard: ISO 1940 *Type: Shrink Fit CAT Holder *USA-ANSI Tool Shank Range: 1/4

Description:
*Smaller nose diameter than traditional ShrinkFIT designs *Maximum T.I.R. onlly 0.0001" *Balanced to 25,000 RPM at G2.5 tolerance *Great for finish passes where small nose diameter tooling is required *Coolant through spindle with coolant set screw comes standard *Each holder is certified for accuracy and balance and comes with it's own lab report

Shipping Info:
*Actual Weight - .1437
