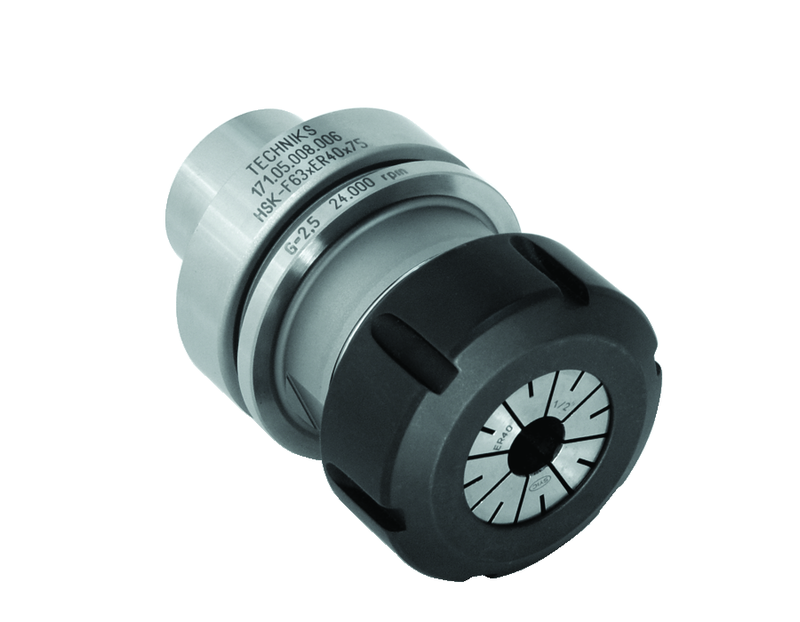

HSK63F x ER40-125 w/ #46140 Nut - Collet Chuck

Item #: TE1230005
Manufacturer: Techniks
Mfg #: 30005

Technical Specifications:
*Brand Name: Techniks *Capacity: ER40 *Chuck Size: HSK63F *Collets Included: No *Coolant Supply: Coolant-thru with Coolant Pipe, sold separately *Head Length/Projection: 125mm *Model Number: 30005 *Mount: HSK63F *Nut Diameter: 2.48 *Overall Length: 10.84 *Size/Range: .086 - 1.024 *Spindle Interface: HSK63F *Weight: 3.75 lbs *Wrench Number: TE1204617

Description:
*Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance *They are individually lab tested for accuracy and balance and come with their individual performance report *Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket *

Shipping Info:
*Actual Weight - 3.7500 *Dimensions - Height: 6.00 Length: 3.00 Width: 3.00
