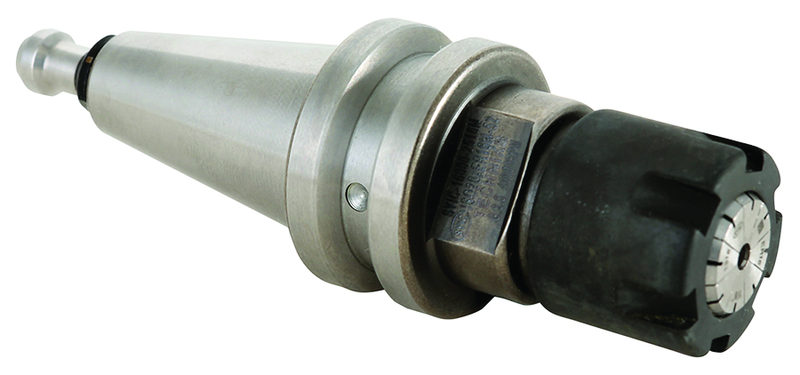

ISO25 (F=15.9) X ER25 w/ PULL STUD - Collet Chuck

Item #: TE1225077
Manufacturer: Techniks
Mfg #: 25077

Technical Specifications:
*Brand Name: Techniks *Capacity: ER25 *Chuck Size: ISO25 *Collets Included: No *Coolant Supply: Coolant-thru with Coolant Retention Knob, sold separately *Head Length/Projection: 65mm *Model Number: 25077 *Mount: ISO25 *Nut Diameter: 1.65 *Overall Length: 5.12 *Size/Range: .039 - .75 *Spindle Interface: ISO25 *Weight: 1.05 lbs *Wrench Number: TE1204615

Description:
*Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance *They are individually lab tested for accuracy and balance and come with their individual performance report *Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket *Taper is ground to AT3 accuracy or better *

Shipping Info:
*Actual Weight - 1.0500 *Dimensions - Height: 6.00 Length: 3.00 Width: 3.00
