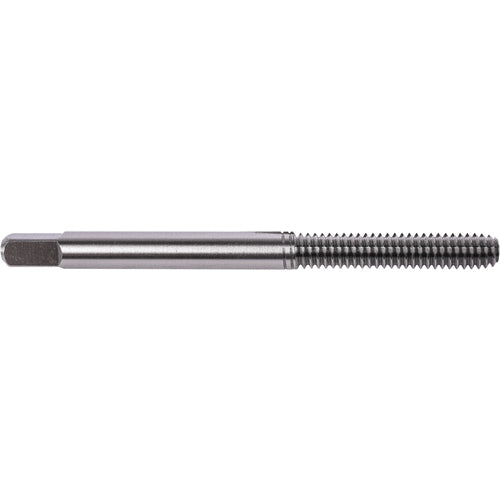

No.10 32 Bottoming Union Butterfield HSS Bright UNF Rol-Form Fluteless ANSI E-code # 330010-32H6NO3
Item #: TD591310167
Brand: Union Butterfield
Model #: 6009476
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Threads per Inch (TPI) | 32 |
| Overall Length (OAL) | 2-3/8″ |
| Length Group | 3D |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Square Size | 0.152″ |
| Thread Tolerance Class (TCTR) | 2B|3B|H6 |
| Measurement Type | Wire Gage |
| Tap Standard | ANSI |
| Style | Bottoming |
| Thread Standard | NF |
| Cutting Edge Material | HSS |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Thread Size | #10 - 32 |
| Coolant Supply Property (CSP) | External |
