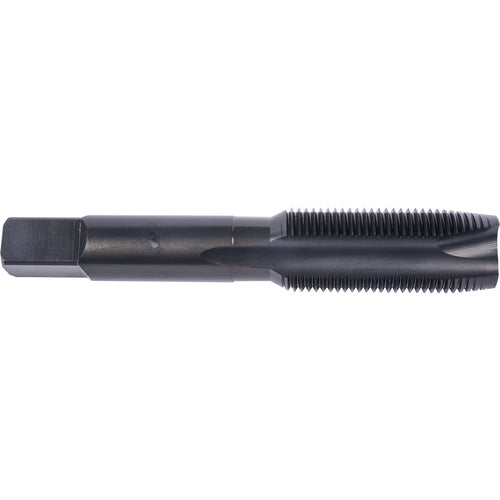

7/8″- 9 4 Flute Plug Union Butterfield HSS Steam Tempered UNC Machine Tap ANSI E-code # 19857/8X9
Item #: TD541013067
Brand: Union Butterfield
Model #: 6009100
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium |
| Thread Size | 7/8″ - 9 |
| Connection Diameter Machine Side (DCONMS) | 0.523″ |
| Thread Diameter Size (TDZ) | 7/8″ |
| Thread Cutting Part Length (THL) | 2-7/32″ |
| Threads per Inch (TPI) | 9 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Plug |
| Overall Length (OAL) | 4-11/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS |
| Square Size | 3/4″ |
| Standard | ANSI |
| Measurement Type | Fractional |
| Tool Type | Machine Tap |
