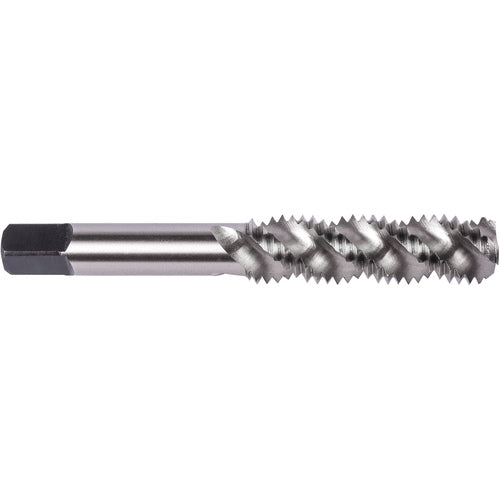

M8 1.25 MM 3 Flute Bottoming Union Butterfield HSS Bright M Machine Tap Spiral Flute 52 ANSI E-code # 1788M8X1.25NO3
Item #: TD501012948
Brand: Union Butterfield
Model #: 6008709
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | ANSI |
| Thread Pitch (TP) | 1.25 mm |
| Tool Type | Machine Tap |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 2-23/32″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Length Group | 2.5D |
| Cutting Edge Material | HSS |
| Square Size | 0.238″ |
| Thread Tolerance Class (TCTR) | 6H|D5 |
| Measurement Type | Metric |
