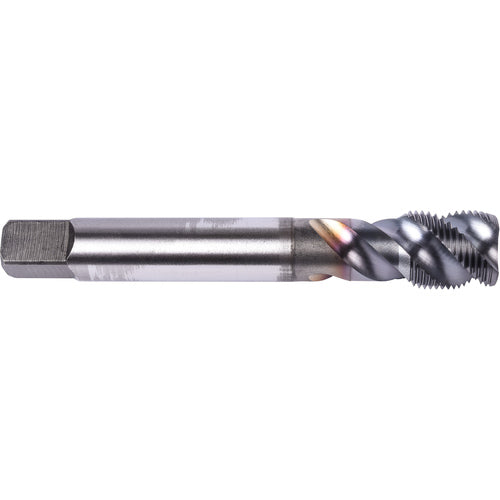

M6 1.00 MM 3 Flute Union Butterfield HSS-PM TiCN Applix M Machine Tap Spiral Flute 50 DIN/ANSI E-code # 1677APM6X1.0
Item #: TD4946204929
Brand: Union Butterfield
Model #: 6204929
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Standard | DIN/ANSI |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Machine Tap |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 80 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 11 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Length Group | 3D |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.191″ |
| Thread Tolerance Class (TCTR) | 6H |
| Measurement Type | Metric |
