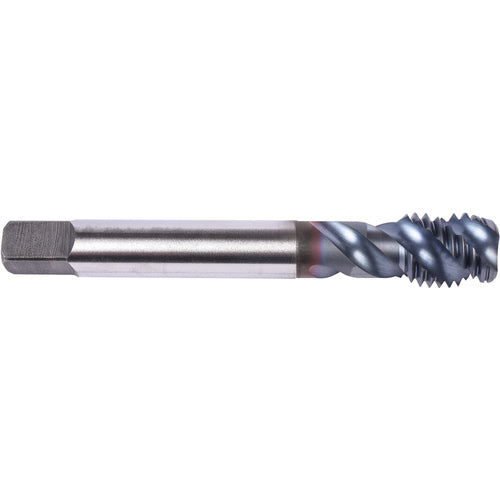

1/2″- 13 3 Flute Union Butterfield HSS-PM TiCN Applix UNC Machine Tap Spiral Flute 50 DIN/ANSI E-code # 16781/2X13
Item #: TD481717534
Brand: Union Butterfield
Model #: 6008735
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Standard | DIN/ANSI |
| Threads per Inch (TPI) | 13 |
| Tool Type | Machine Tap |
| Thread Standard | NC |
| Coating | TiCN |
| Overall Length (OAL) | 4.331″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.63″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Length Group | 3D |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.275″ |
| Thread Tolerance Class (TCTR) | 2B |
| Measurement Type | Fractional |
