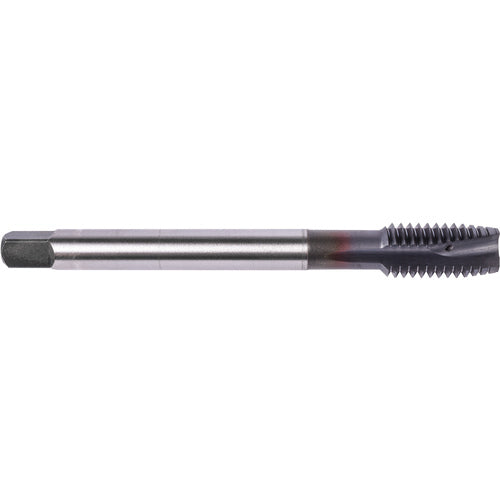

5/8″- 11 4 Flute Union Butterfield HSS-PM TiCN Applix UNC Machine Tap DIN/ANSI E-code # 16745/8X11
Item #: TD461716538
Brand: Union Butterfield
Model #: 6007931
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Tool Type | Machine Tap |
| Thread Size | 5/8″ - 11 |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Threads per Inch (TPI) | 11 |
| Thread Cutting Part Length (THL) | 1.063″ |
| Thread Tolerance Class (TCTR) | 2B |
| End Shape | Spiral Point |
| Overall Length (OAL) | 4.331″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 |
| Length Group | 3xD |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.36″ |
| Standard | DIN|ANSI |
| Measurement Type | Fractional |
