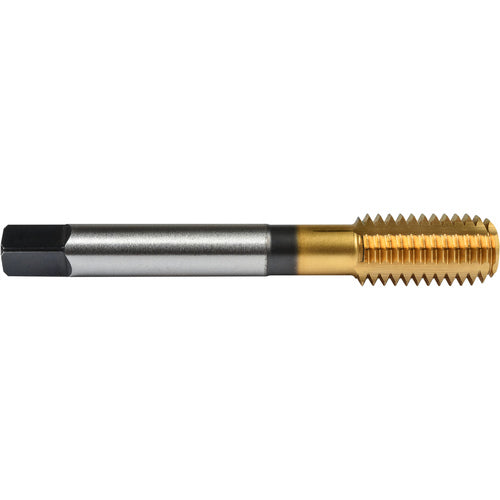

3/8″- 16 Union Butterfield HSS-PM TiN Applix UNC UNC Machine Forming Tap ANSI E-code # 16413/8X16H7
Item #: TD441712291
Brand: Union Butterfield
Model #: 6008374
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 3/8″ |
| Threads per Inch (TPI) | 16 |
| Overall Length (OAL) | 2-15/16″ |
| Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Square Size | 0.286″ |
| Thread Tolerance Class (TCTR) | 2B|3B|H7 |
| Measurement Type | Fractional |
| Tap Standard | ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Thread Size | 3/8″ - 16 |
