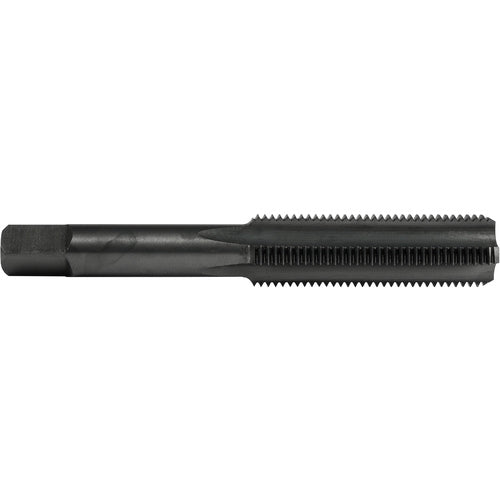

5/8″- 11 4 Flute Plug Union Butterfield HSS Nitride/ST UNC Hand Tap ANSI E-code # 16005/8X11NO2
Item #: TD421011280
Brand: Union Butterfield
Model #: 6008226
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 11 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Coating | Nitride |
| Overall Length (OAL) | 3-13/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-13/16″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Cast Iron |
| Square Size | 0.36″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|H5 |
| Thread Size | 5/8″ - 11 |
