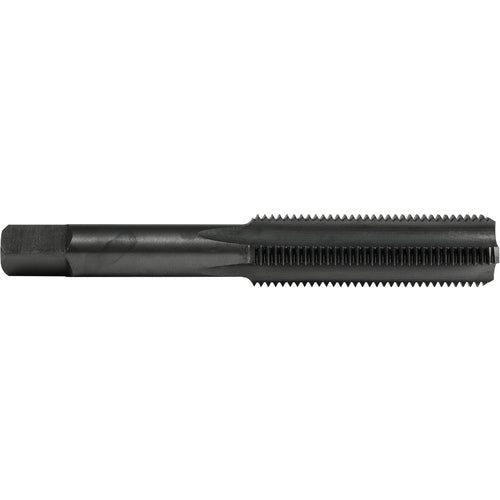

7/16″- 20 4 Flute Bottoming Union Butterfield HSS Nitride/ST UNF Hand Tap ANSI E-code # 16007/16X20NO3
Item #: TD421011271
Brand: Union Butterfield
Model #: 6008266
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Tool Type | Hand Tap |
| Thread Standard | NF |
| Coating | Nitride |
| Overall Length (OAL) | 3-5/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Cast Iron |
| Square Size | 0.242″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|H5 |
| Thread Size | 7/16″ - 20 |
