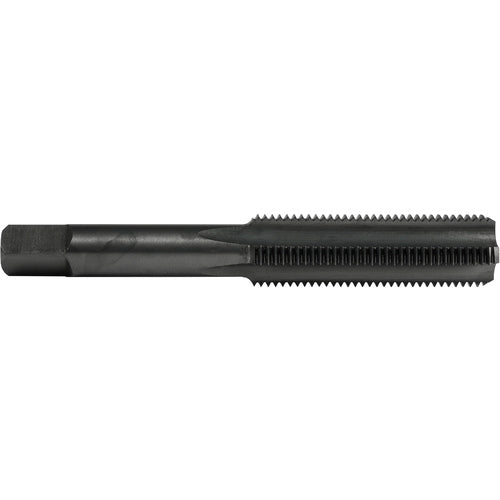

5/16″- 24 4 Flute Bottoming Union Butterfield HSS Nitride/ST UNF Hand Tap ANSI E-code # 16005/16X24NO3
Item #: TD421011263
Brand: Union Butterfield
Model #: 6008217
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 24 |
| Tool Type | Hand Tap |
| Thread Standard | NF |
| Coating | Nitride |
| Overall Length (OAL) | 2-23/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Cast Iron |
| Square Size | 0.238″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|H5 |
| Thread Size | 5/16″ - 24 |
