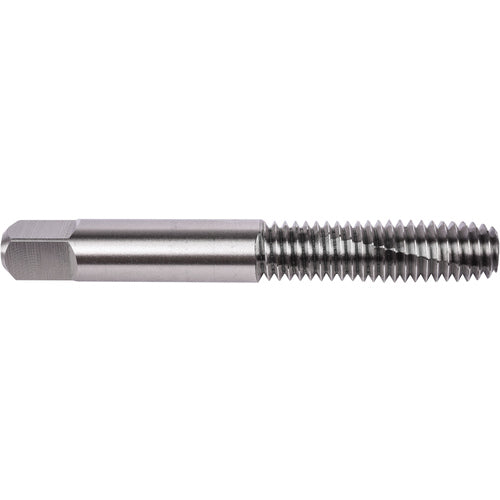

1/4″- 20 Plug Union Butterfield HSS Bright UNC Thread Forming Tap: Rol-Rite Fluteless ANSI E-code # 15801/4X20H4NO2
Item #: TD311310068
Brand: Union Butterfield
Model #: 6006982
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ |
| Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 1.25D |
| Thread Cutting Part Length (THL) | 1″ |
| Square Size | 0.191″ |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|3B|H4 |
| Style | Plug |
| Tap Standard | ANSI |
| Cutting Edge Material | HSS |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | 1/4″ - 20 |
| Coating | Bright |
