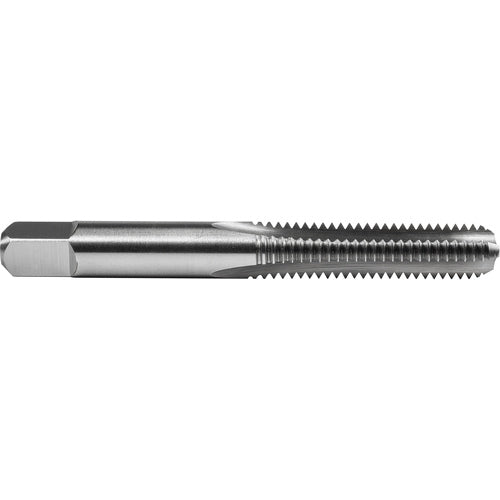

1/4″- 20 3 Flute Plug Union Butterfield HSS Bright UNC Hand Tap, Screw Thread Insert Straight Flute ANSI E-code # 15721/4X20H3NO2
Item #: TD291010451
Brand: Union Butterfield
Model #: 6006921
| Product Specifications | |
|---|---|
| Tool Type | Hand Tap |
| Coating | Bright |
| Style | Plug |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B|H3 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | NC |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Measurement Type | Inch |
| Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Overall Length (OAL) | 2-23/32″ |
| Standard | ANSI |
| Cutting Edge Material | HSS |
| Length Group | 1.5D |
| Flute Count (NOF) | 3 |
| Thread Size | 1/4″ - 20 |
| Applicable Material | Aluminum|Copper|Steel |
