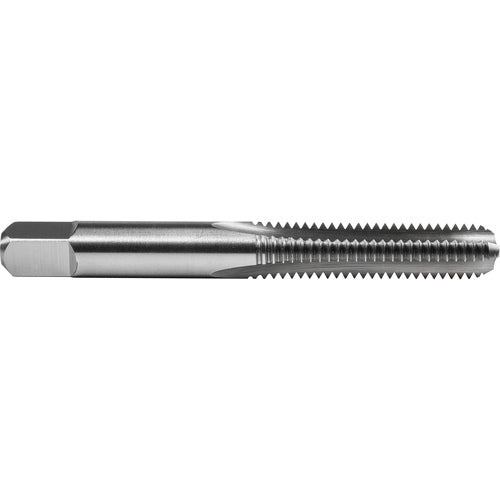

No.10 24 3 Flute Bottoming Union Butterfield HSS Bright UNC Hand Tap, Screw Thread Insert Straight Flute ANSI E-code # 157210-24H2NO3
Item #: TD291010440
Brand: Union Butterfield
Model #: 6006934
| Product Specifications | |
|---|---|
| Tool Type | Hand Tap |
| Coating | Bright |
| Style | Bottoming |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #10 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B|H2 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | NC |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ |
| Measurement Type | Wire Gage |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Overall Length (OAL) | 2-1/2″ |
| Standard | ANSI |
| Cutting Edge Material | HSS |
| Length Group | 1.5D |
| Flute Count (NOF) | 3 |
| Thread Size | #10 - 24 |
| Applicable Material | Aluminum|Copper|Steel |
