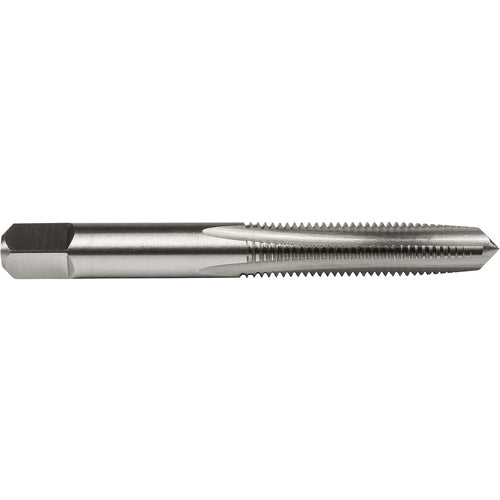

No.12 28 4 Flute Plug Union Butterfield HSS Bright UNF Hand Tap ANSI E-code # 152812-28H34FLNO2
Item #: TD271010771
Brand: Union Butterfield
Model #: 6007186
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #12 |
| Standard | ANSI |
| Threads per Inch (TPI) | 28 |
| Tool Type | Hand Tap |
| Thread Standard | NF |
| Coating | Bright |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 15/16″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.165″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gage |
| Thread Tolerance Class (TCTR) | 2B|3B|H3 |
| Thread Size | #12 - 28 |
