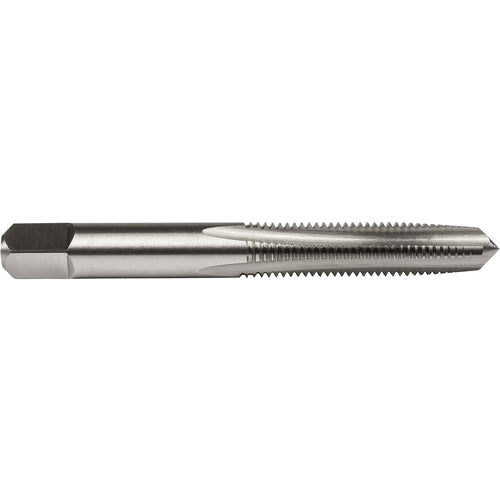

No.8 32 3 Flute Plug Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 15288-32H23FLNO2
Item #: TD271010712
Brand: Union Butterfield
Model #: 6006991
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 2-1/8″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.131″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gage |
| Thread Tolerance Class (TCTR) | 2B|3B|H2 |
| Thread Size | #8 - 32 |
| Standard | ANSI |
