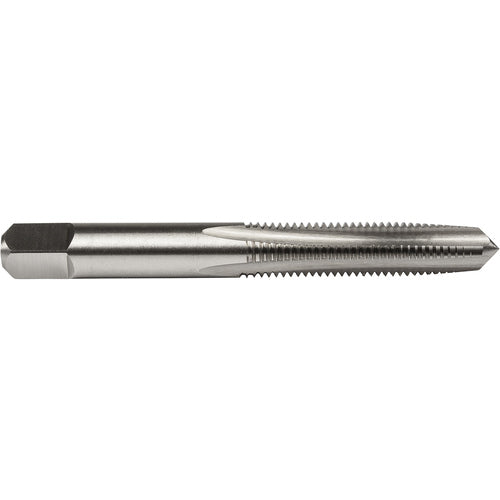

No.3 48 3 Flute Taper Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 15283-48H23FLNO1
Item #: TD271010625
Brand: Union Butterfield
Model #: 6007178
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #3 |
| Standard | ANSI |
| Threads per Inch (TPI) | 48 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 1-13/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gage |
| Thread Tolerance Class (TCTR) | 2B|3B|H2 |
| Thread Size | #3 - 48 |
