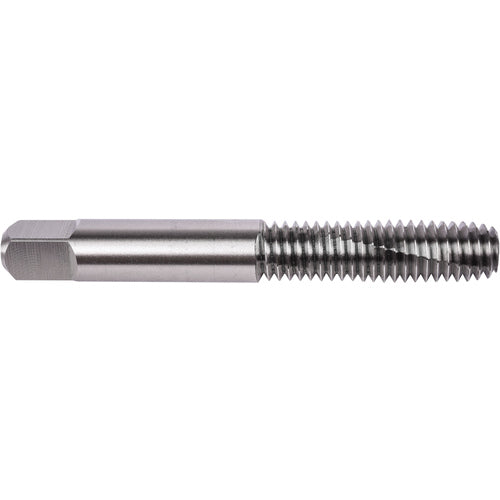

M5 0.80 MM Bottoming Union Butterfield HSS Bright M Thread Forming Tap: Rol-Rite Fluteless ANSI E-code # 1580M5X.8NO3
Item #: TD251310405
Brand: Union Butterfield
Model #: 6006933
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | Bright |
| Thread Diameter Size (TDZ) | M5 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.8 mm |
| Length Group | 2.5D |
| Overall Length (OAL) | 2-3/8″ |
| Square Size | 0.152″ |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D7 |
| Style | Bottoming |
| Tap Standard | ANSI |
| Cutting Edge Material | HSS |
| Thread Standard | Metric |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Thread Size | M5 × 0.8 |
