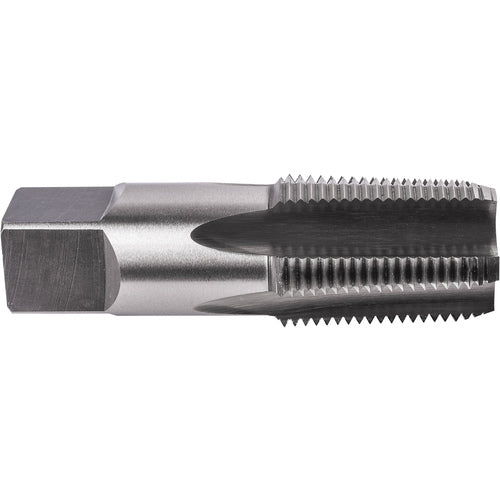

1″-11.5 5 Flute Union Butterfield HSS Bright NPT Pipe Tap ANSI E-code # 15451X11.1/2
Item #: TD251012875
Brand: Union Butterfield
Model #: 6007276
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11.5 |
| Applicable Material | Cast Iron|Copper|Hardened Steel|Steel |
| Thread Standard | NPT |
| Coating | Bright |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 |
| Measurement Type | Fractional |
| Overall Length (OAL) | 3-3/4″ |
| Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-3/4″ |
| Length Group | 1.5D |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ |
| Square Size | 0.843″ |
| Flute Type | Straight |
| Thread Size | 1″ - 11.5 |
| Coolant Supply Property (CSP) | External |
