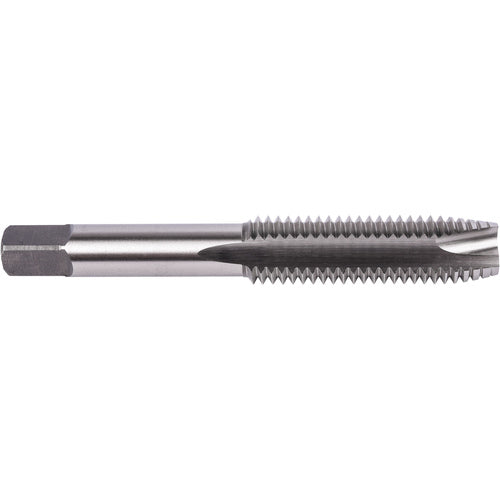

M2 0.40 MM 2 Flute Plug Union Butterfield HSS Bright M Relieved Style Spiral Point ANSI E-code # 1785M2
Item #: TD251012659
Brand: Union Butterfield
Model #: 6008747
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | M2 × 0.4 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | M2 |
| End Shape | Spiral Point |
| Thread Pitch (TP) | 0.4 mm |
| Style | Plug |
| Thread Tolerance Class (TCTR) | 6H|D3 |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1-3/4″ |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Length Group | 2.5xD |
| Flute Count (NOF) | 2 |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Standard | ANSI |
