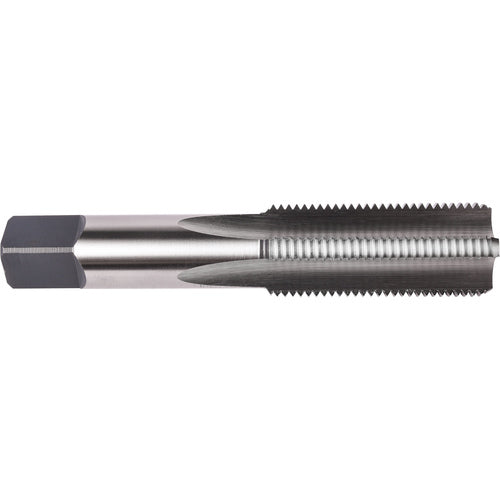

M30 3.50 MM 4 Flute Taper Union Butterfield HSS Bright M Hand Tap ANSI E-code # 1700M30X3.5NO1
Item #: TD251012570
Brand: Union Butterfield
Model #: 6008742
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M30 |
| Standard | ANSI |
| Thread Pitch (TP) | 3.5 mm |
| Tool Type | Hand Tap |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 5-7/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-9/16″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.021″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.766″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D9 |
| Thread Size | M30 × 3.5 |
