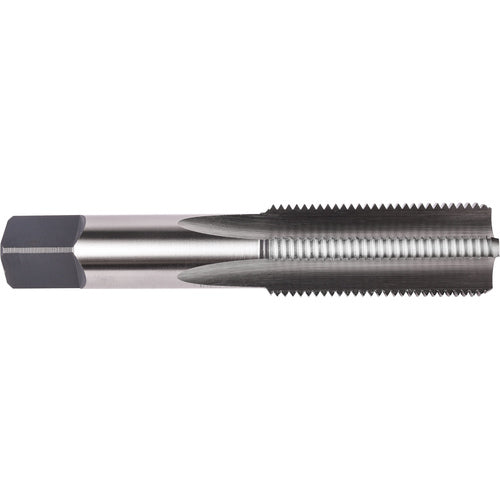

M3.5 0.60 MM 3 Flute Taper Union Butterfield HSS Bright M Hand Tap ANSI E-code # 1700M3.5X.6NO1
Item #: TD251012435
Brand: Union Butterfield
Model #: 6008712
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3.5 |
| Standard | ANSI |
| Thread Pitch (TP) | 0.6 mm |
| Tool Type | Hand Tap |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 2″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D4 |
| Thread Size | M3.5 × 0.6 |
