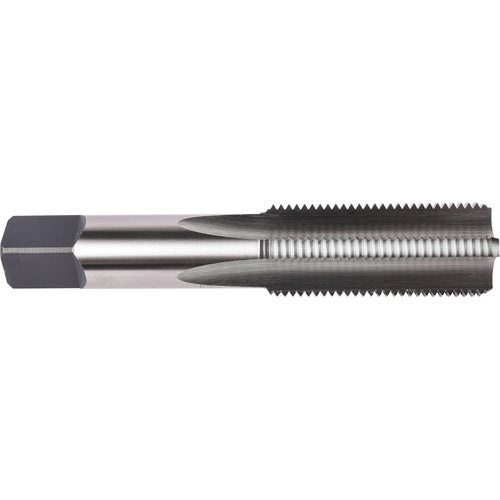

M1.6 0.35 MM 2 Flute Plug Union Butterfield HSS Bright M Hand Tap ANSI E-code # 1700M1.6X.35NO2
Item #: TD251012409
Brand: Union Butterfield
Model #: 6009005
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M1.6 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 0.35 mm |
| Coating | Bright |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 1-5/8″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D3 |
| Thread Size | M1.6 × 0.35 |
| Standard | ANSI |
