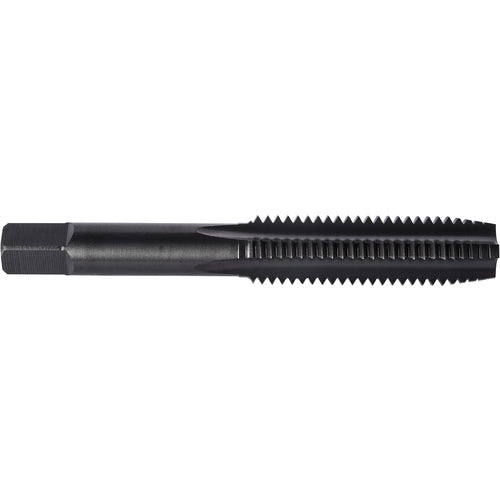

M12 1.75 MM 4 Flute Plug Union Butterfield HSS Nitride M Hand Tap ANSI E-code # 1599M12NO2
Item #: TD251012262
Brand: Union Butterfield
Model #: 6007708
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | ANSI |
| Thread Pitch (TP) | 1.75 mm |
| Tool Type | Hand Tap |
| Thread Standard | Metric |
| Coating | Nitride |
| Overall Length (OAL) | 3-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Cast Iron |
| Square Size | 0.275″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D6 |
| Thread Size | M12 × 1.75 |
