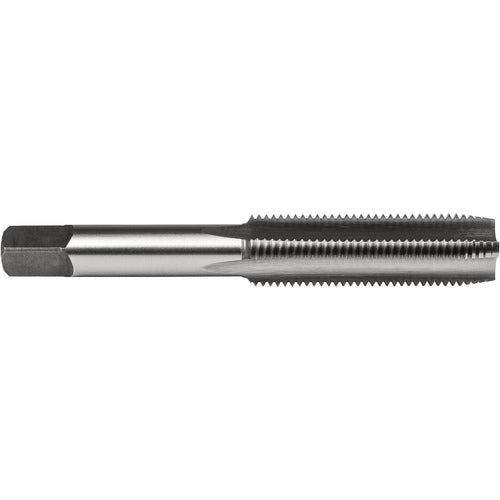

1/4″- 20 4 Flute Plug Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 1500L1/4X20
Item #: TD251011772
Brand: Union Butterfield
Model #: 6006635
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.191″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 3B|H3 |
| Thread Size | 1/4″ - 20 |
