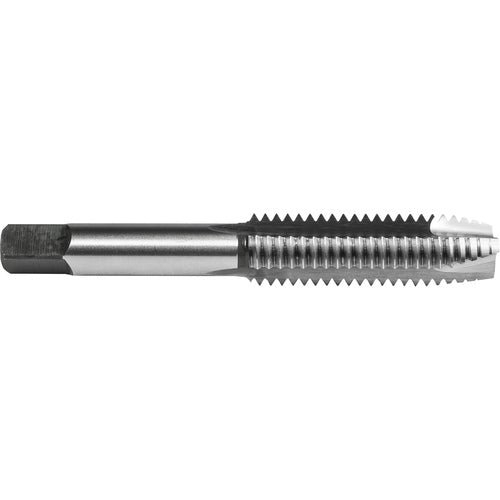

3/8″- 16 3 Flute Plug Union Butterfield HSS Bright UNC Non-Relieved Style Spiral Point ANSI E-code # 15853/8
Item #: TD251011756
Brand: Union Butterfield
Model #: 6007163
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | 3/8″ - 16 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Threads per Inch (TPI) | 16 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B|H1|H11 |
| Style | Plug |
| Overall Length (OAL) | 2-15/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 2xD |
| Cutting Edge Material | HSS |
| Square Size | 0.286″ |
| Standard | ANSI |
| Measurement Type | Fractional |
