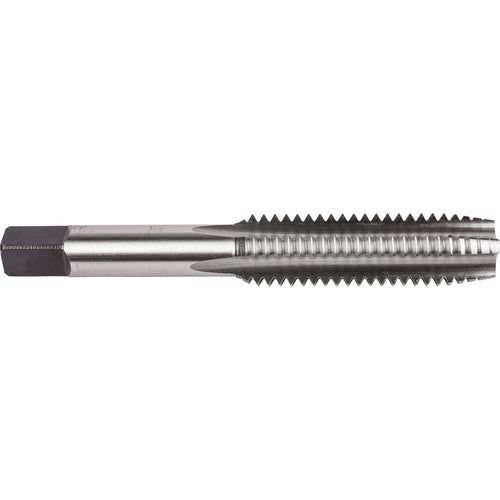

1/2″- 13 4 Flute Plug Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 15001/2
Item #: TD251011752
Brand: Union Butterfield
Model #: 6007027
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 13 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 3-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.275″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | H1|H11 |
| Thread Size | 1/2″ - 13 |
