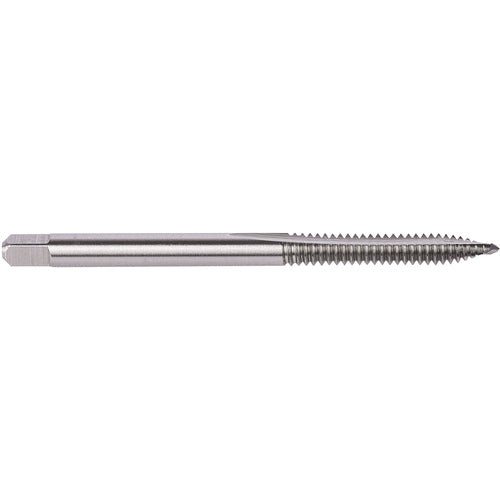

No.10 24 2 Flute Plug Union Butterfield HSS Bright UNC Non-Relieved Style Spiral Point ANSI E-code # 1534NR10-24H2NO2
Item #: TD251010838
Brand: Union Butterfield
Model #: 6007390
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | #10 - 24 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Diameter Size (TDZ) | #10 |
| End Shape | Spiral Point |
| Threads per Inch (TPI) | 24 |
| Style | Plug |
| Thread Tolerance Class (TCTR) | 2B|3B|H2 |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-3/8″ |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Length Group | 2.5xD |
| Flute Count (NOF) | 2 |
| Square Size | 0.152″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
| Standard | ANSI |
