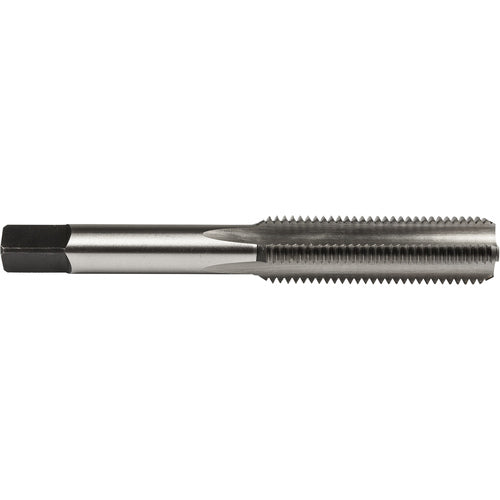

9/16″- 12 4 Flute Bottoming Union Butterfield HSS Bright UNC Hand Tap ANSI E-code # 15009/16X12H3NO3
Item #: TD251010108
Brand: Union Butterfield
Model #: 6007522
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 12 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 3-19/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.322″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|3B|H3 |
| Thread Size | 9/16″ - 12 |
