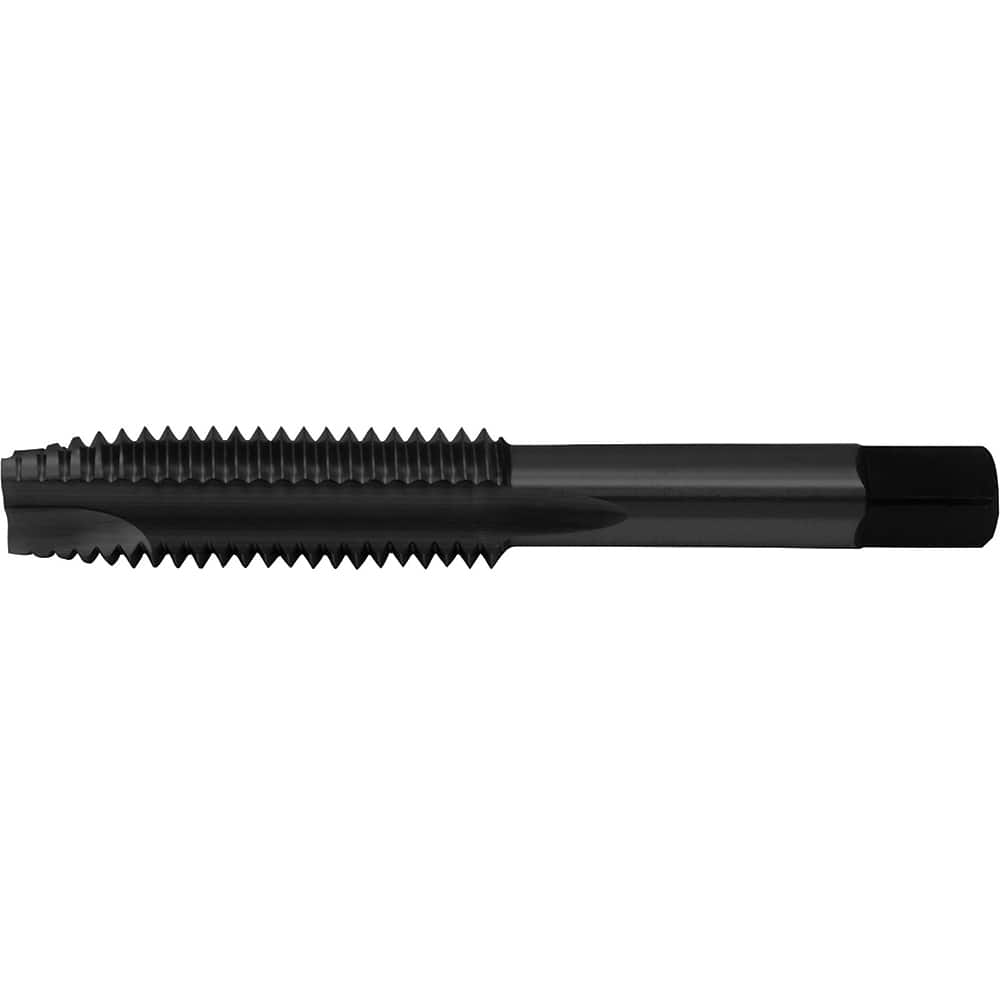

Greenfield Threading - Spiral Point Taps Thread Size (Inch): 3/4-10 Number of Flutes: 4
Item #: 96908934
Brand: Greenfield Threading
Model #: 313567
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Product Specifications
Spiral Point Taps; Thread Size (Inch): 3/4-10 ; Number of Flutes: 4 ; Chamfer: Plug ; Thread Limit: H11 ; Finish/Coating: Black Oxide ; Material: High Speed Steel
| Thread Size (Inch) | 3/4-10 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Thread Limit | H11 |
| Finish/Coating | Black Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.25 |
| Oversize | Yes |
| Thread Standard | UNC |
| Material Grade | M2 |
| Thread Length (Inch) | 2 |
| Series/List | SPGP+5 |
| Style | Spiral Point |
| Shank Diameter (Decimal Inch) | 0.59 |
| Square Size (Decimal Inch) | 0.6875 |
| Material Application | Alloy Steel; Carbon Steel; Aluminum; Stainless Steel |
| Material Application2 | Alloy Steel; Carbon Steel; Aluminum; Stainless Steel |
| PSC Code | 5136 |
