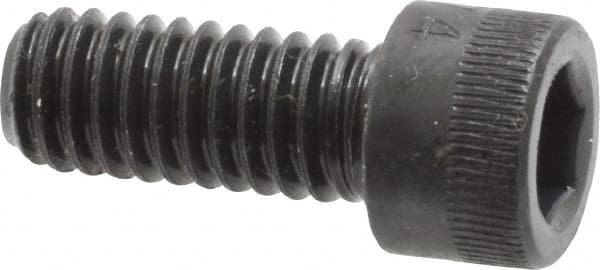

Made in USA - #8-32 UNC Hex Socket Cap Screw
Item #: 38707295
Brand: Made in USA
Model #:
Features and Benefits
Socket cap head types have large cylindrical heads with recessed hex-shaped drives. They are ideal for applications where limited clearance would not allow the use of wrenches and sockets.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Socket Cap |
| Drive Type | Hex Socket |
| Thread Size (Inch) | #8-32 |
| Length Measurement Type | Length Under Head |
| Length (Inch) | 1/4 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | UNC |
| Fastener Standard | ASME B18.3 |
| Hex Key Size (Inch) | 9/64 |
| Material Grade | ASTM A574 |
| PSC Code | 5305 |
