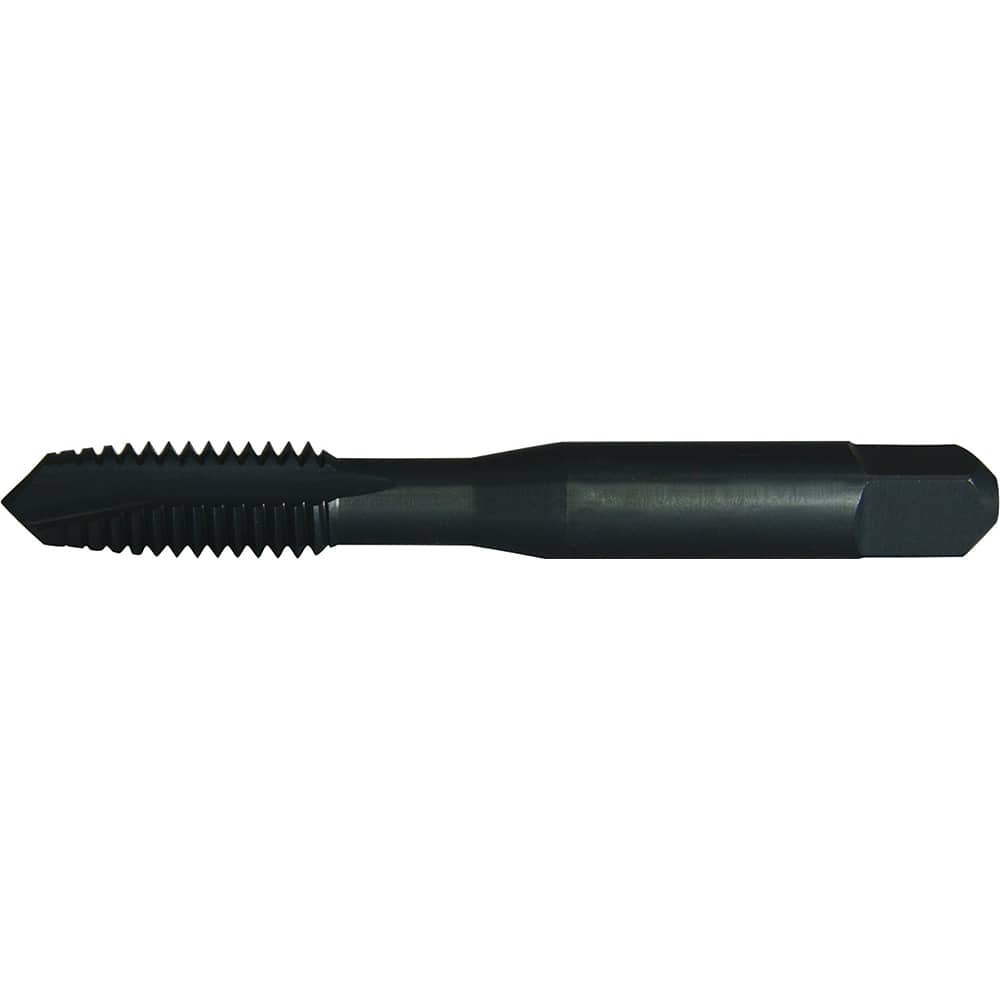

Greenfield Threading - Spiral Point Taps Thread Size (Inch): 5/8-11 Number of Flutes: 3
Item #: 96909445
Brand: Greenfield Threading
Model #: 330126
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Product Specifications
Spiral Point Taps; Thread Size (Inch): 5/8-11 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 2B ; Thread Limit: H3 ; Finish/Coating: Black Oxide
| Thread Size (Inch) | 5/8-11 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | Black Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.8125 |
| Oversize | No |
| Thread Standard | UNC |
| Material Grade | M2 |
| Thread Length (Inch) | 1.8125 |
| Series/List | SPGP |
| Style | Spiral Point |
| Shank Diameter (Decimal Inch) | 0.48 |
| Square Size (Decimal Inch) | 0.5625 |
| Material Application | Alloy Steel; Carbon Steel; Aluminum; Stainless Steel |
| Material Application2 | Alloy Steel; Carbon Steel; Aluminum; Stainless Steel |
| PSC Code | 5136 |
