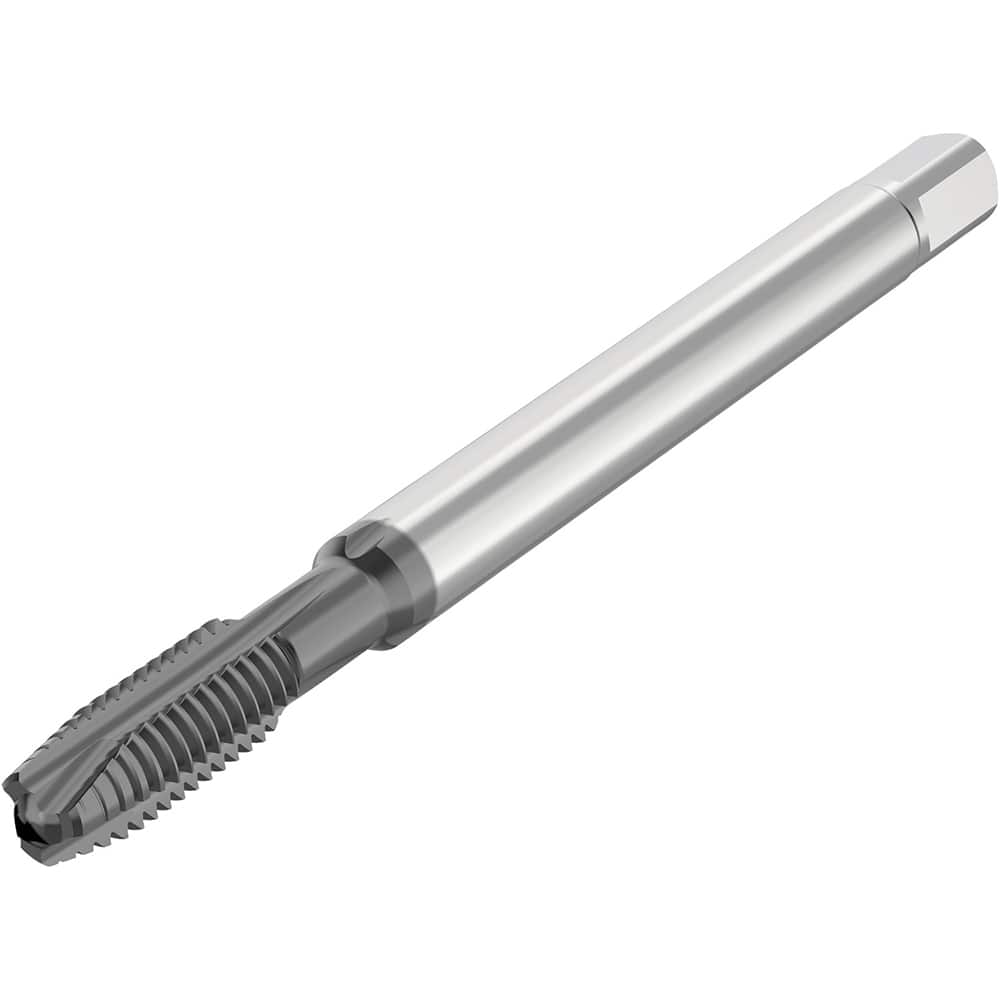

Seco - Spiral Point Taps Thread Size (mm): MJ6x1.00 Number of Flutes: 3
Item #: 14418289
Brand: Seco
Model #: 10001174
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Product Specifications
Spiral Point Taps; Thread Size (mm): MJ6x1.00 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 4H ; Finish/Coating: ACN ; Material: HSS-E-PM
| Thread Size (mm) | MJ6x1.00 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 4H |
| Finish/Coating | ACN |
| Material | HSS-E-PM |
| Through Coolant | No |
| Thread Direction | Right Hand |
| Overall Length (mm) | 80.0000 |
| Oversize | No |
| Thread Standard | MJ |
| Thread Length (mm) | 15.000 |
| Series/List | MTP |
| Tapping Depth (mm) | 23.00 |
| Shank Diameter (mm) | 6.0000 |
| Material Application | Super Alloys; Difficult-to-Machine Steels |
| Material Application2 | Super Alloys; Difficult-to-Machine Steels |
