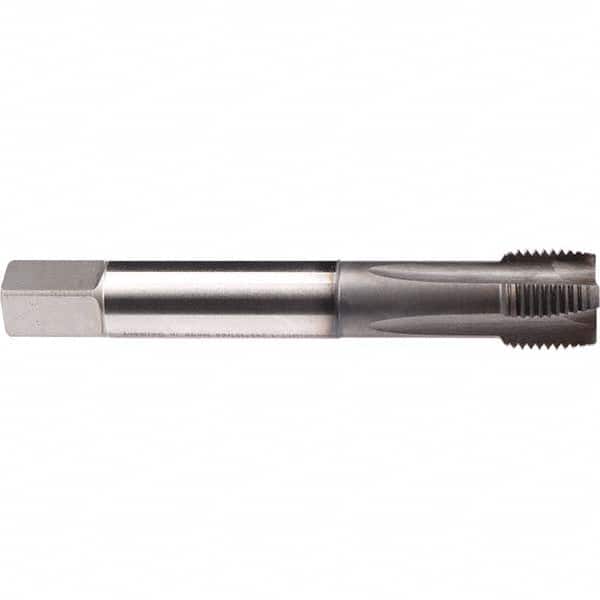

Emuge - 5/8-18 UNF 2BX 4 Flute GLT-1 Finish PM Cobalt Spiral Point Tap
Item #: 95626768
Brand: Emuge
Model #: CU20A601.5049
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-18 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2BX |
| Thread Limit | H6 |
| Finish/Coating | GLT-1 |
| Material | PM Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Thread Standard | UNF |
| Style | Spiral Point |
| Tapping Depth (Inch) | 1-7/8 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3598 |
| Material Application | Stainless Steel |
| Material Application2 | Steel |
