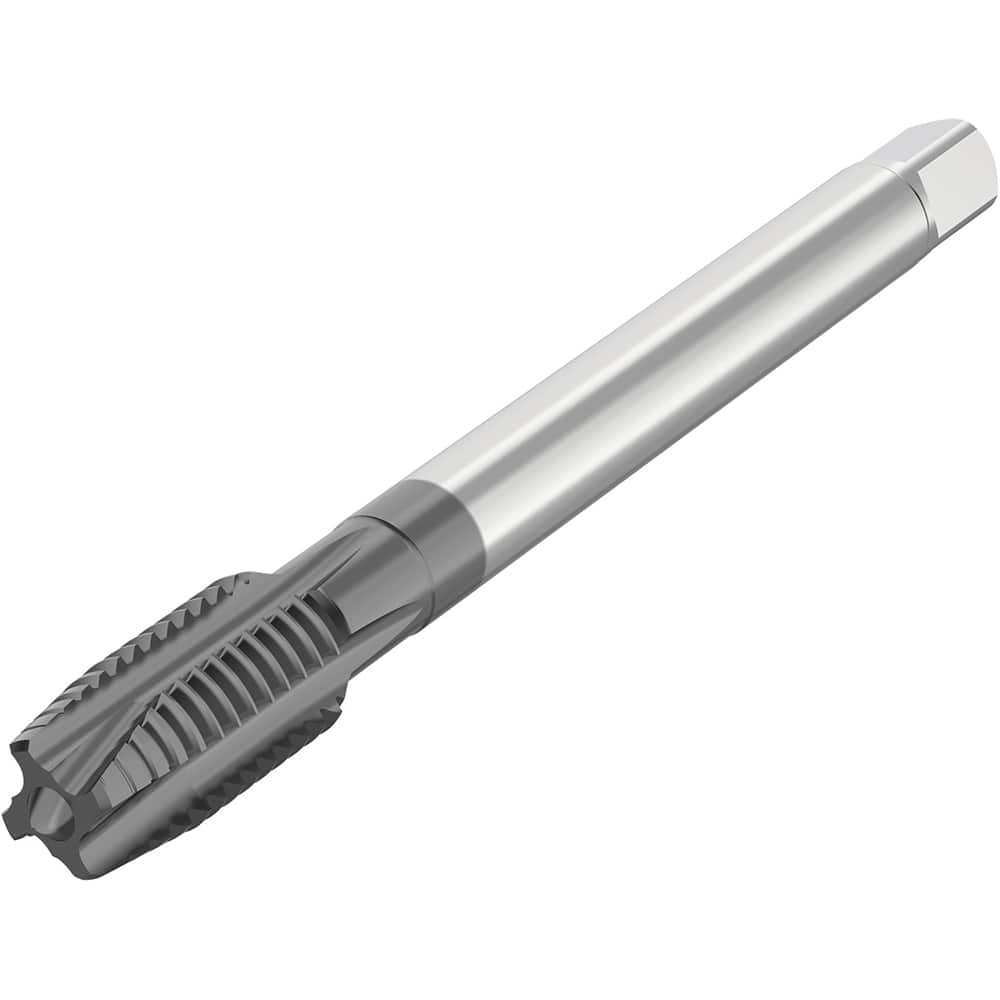

Seco - Spiral Point Taps Thread Size (mm): M16 Number of Flutes: 4
Item #: 14419212
Brand: Seco
Model #: 10001170
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Product Specifications
Spiral Point Taps; Thread Size (mm): M16 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6HX ; Finish/Coating: ACN ; Material: HSS-E-PM
| Thread Size (mm) | M16 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Finish/Coating | ACN |
| Material | HSS-E-PM |
| Through Coolant | No |
| Thread Direction | Right Hand |
| Overall Length (mm) | 110.0000 |
| Oversize | No |
| Thread Standard | Metric |
| Thread Length (mm) | 25.000 |
| Series/List | MTP |
| Tapping Depth (mm) | 68.00 |
| Shank Diameter (mm) | 12.0000 |
| Material Application | Super Alloys; Difficult-to-Machine Steels |
| Material Application2 | Super Alloys; Difficult-to-Machine Steels |
