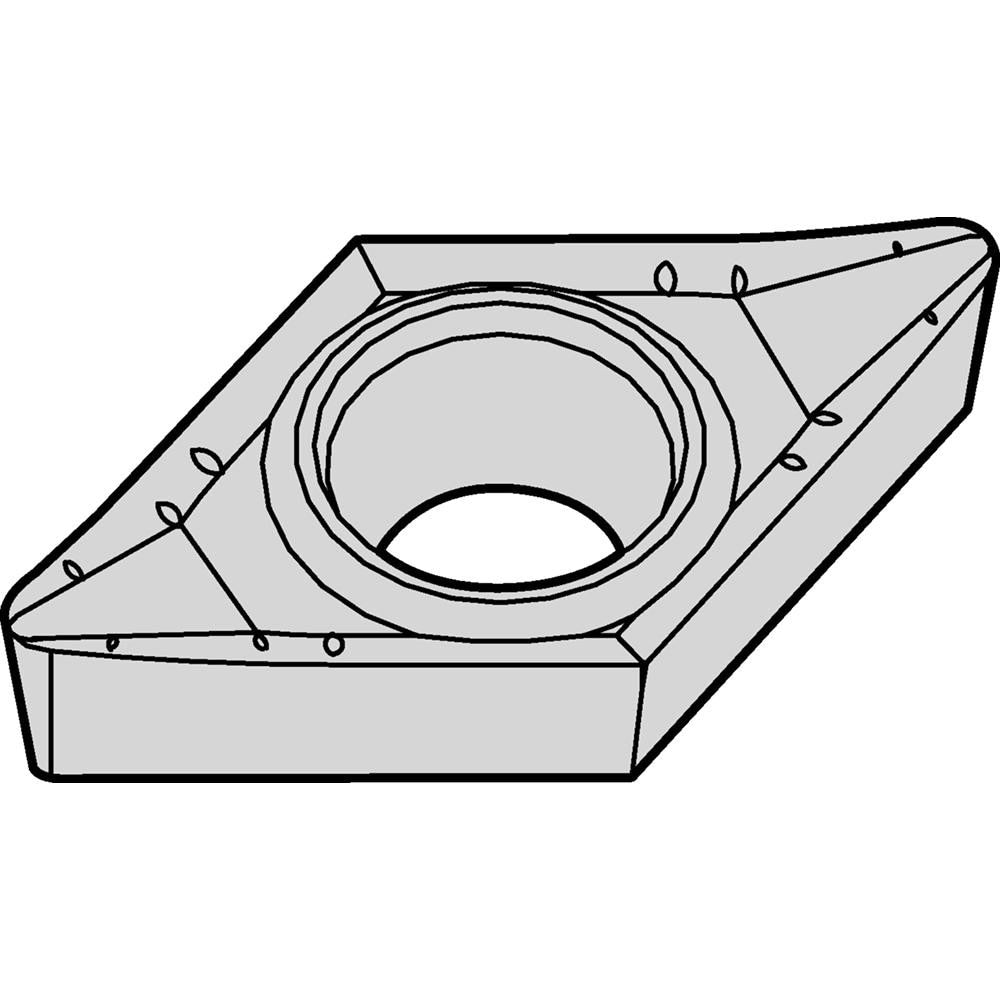

Brand: Widia / Part #: 2022861
Item #: 95246823
Brand: Widia
Model #: 2022861
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 32505 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | HWK15 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.2289 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 55.00 |
| Relief Angle | 7.000 |
| Series | DCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4578 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | DCGT32505AL3 |
| Iso Code | DCGT11T302AL3 |
| Manufacturers Catalog Number | DCGT32505AL3 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | AL3 |
| Style | DCGT |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
