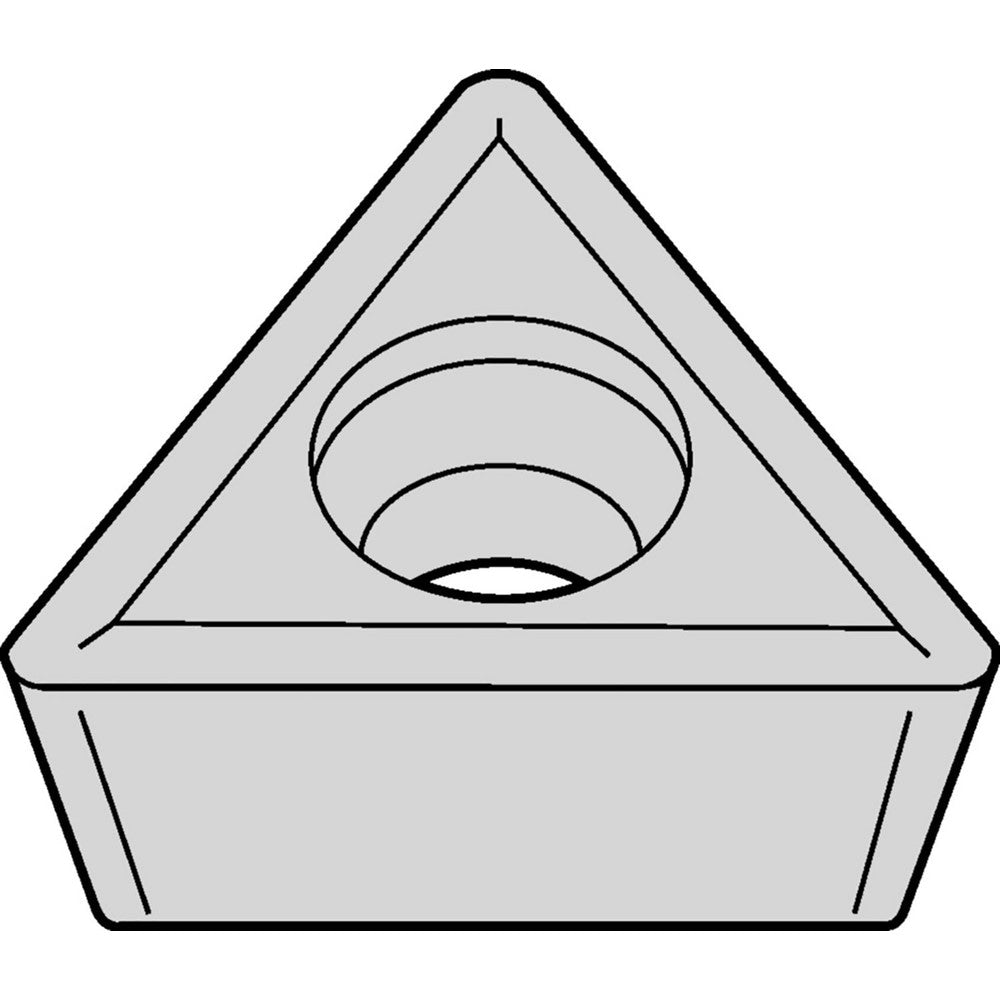

Brand: Widia / Part #: 2028627
Item #: 95603205
Brand: Widia
Model #: 2028627
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 3252 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | TTR |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1876 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 60.00 |
| Relief Angle | 7.000 |
| Series | TCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6496 |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | TCMT16T308 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | TCMT |
| Width (Decimal Inch - 4 Decimals) | 0.3752 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
