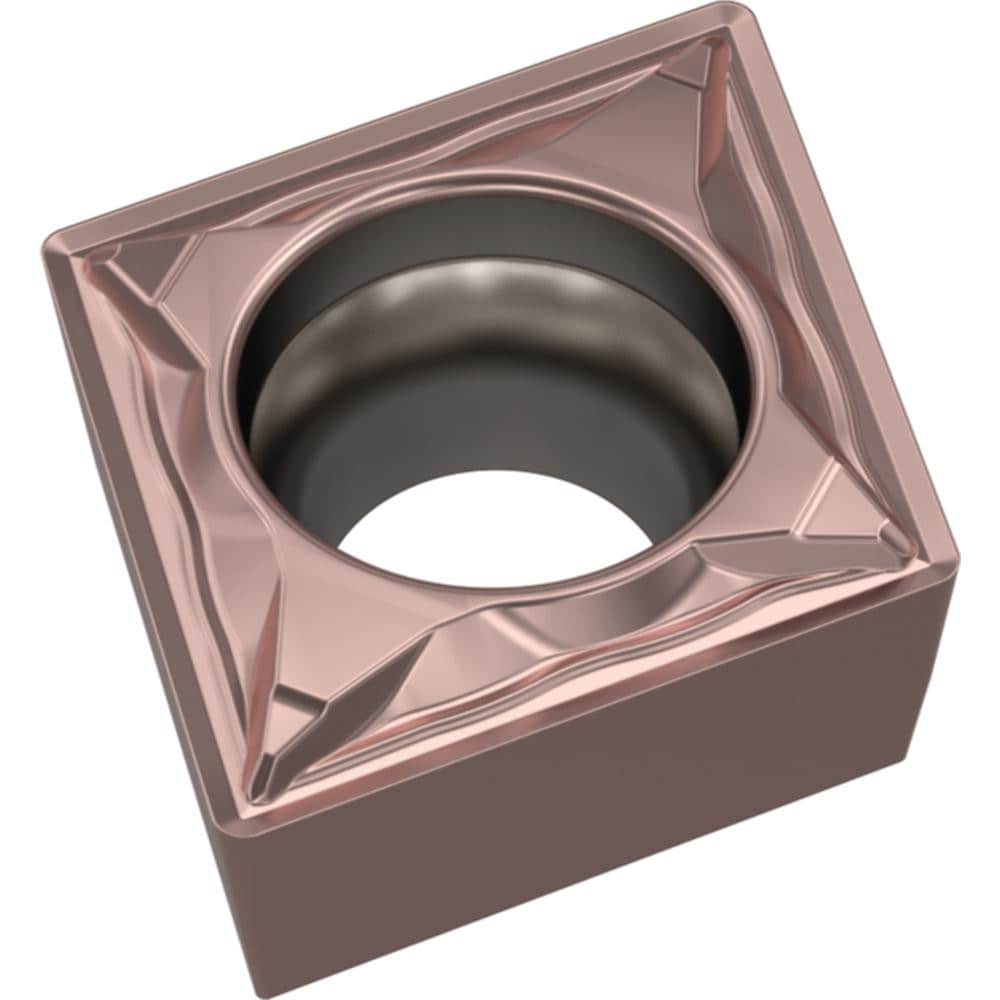

Brand: Widia / Part #: 5684344

Brand: Widia / Part #: 5684344


Item #: 95274619
Brand: Widia
Model #: 5684344

Product Specifications

Insert Style CCMT
Insert Shape Code C
Insert Size Code 2152
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WS25PT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1270
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 80.00
Relief Angle 7.000
Series CCMT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.2539
Number Of Cutting Edges 2
Secondary Workpiece Material Stainless Steel; Super-alloys & Titanium
Secondary Workpiece Material Code S; M
Ansi Code CCMT2152FP
Iso Code CCMT060208FP
Manufacturers Catalog Number CCMT2152FP
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker FP
Cutting Edge Style Sharp
Style CCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$13.88
